THIS INSTRUCTION GUIDE APPLIES FOR THE FOLLOWING ALPHAREX HEADLIGHT PRODUCT MODELS:
21-23 Toyota GR86 / Subaru BRZ NOVA-Series LED Projector Headlights (Alpha-Black) / SKU: 880875
21-23 Toyota GR86 / Subaru BRZ NOVA-Series LED Projector Headlights (Black) / SKU: 880876

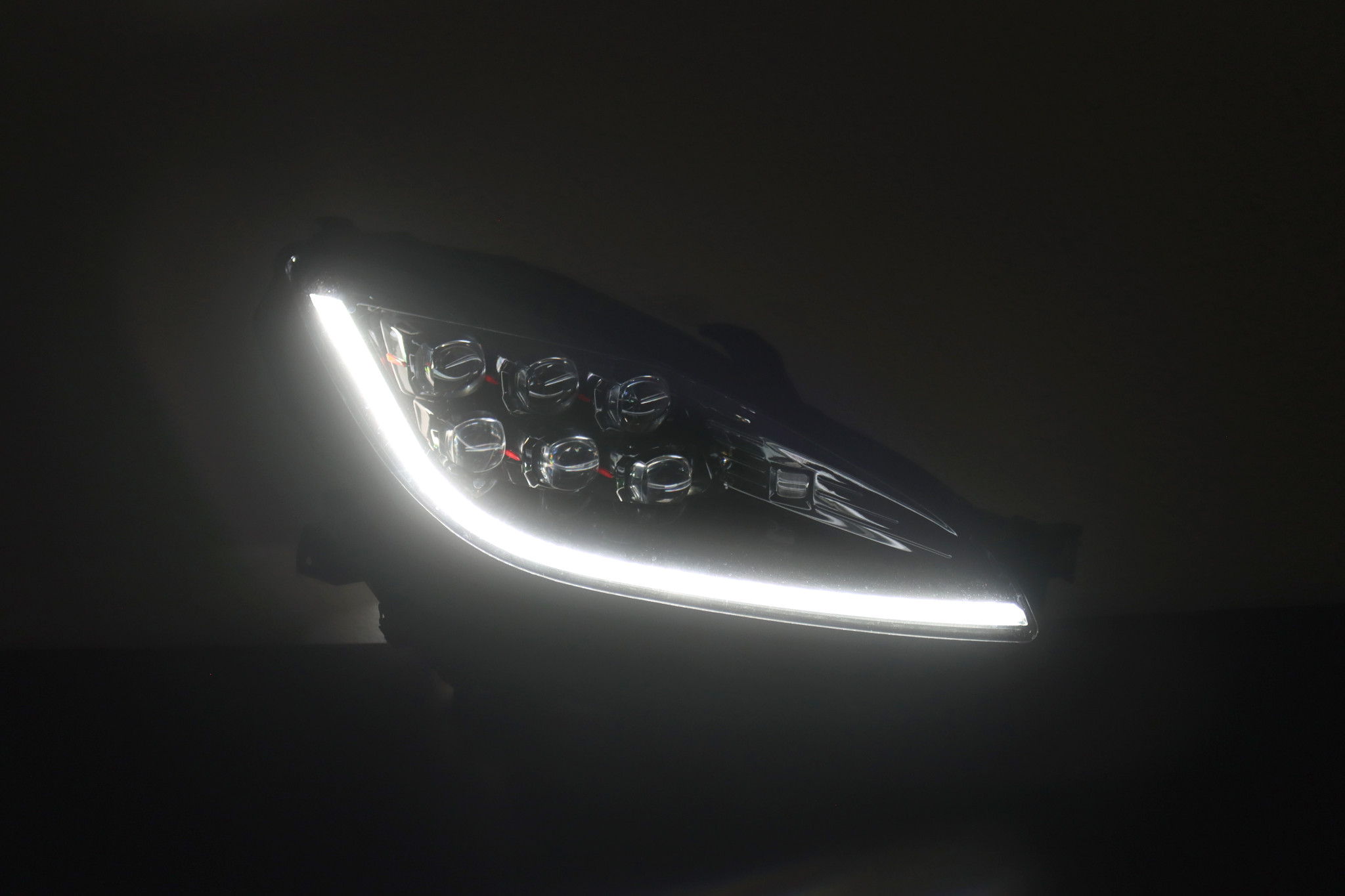

From The product models list, the NOVA-Series headlights for 2021-23 Toyota GR86 | Subaru BRZ will come with optional switch plugs for Amber (Yellow color) DRL & Parking lights. By default the DRL & Parking lights color are White from factory.
ALPHAREX specializes in designing and producing superior and uniquely stylish aftermarket automotive performance lighting with unrival innovative technology. The following instruction guide we take you through on the topic: How to switch to Amber (Yellow color) DRL & Parking Lights for ALPHAREX 2021-23 Toyota GR86 | Subaru BRZ Headlights step by step.
Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.
CUSTOMERS CAN CHOOSE TO SWITCH INTO AMBER (YELLOW COLOR) BASED ON THEIR PREFERENCE.
PLEASE NOTE: Once you have plugged in and switch to Amber, the DRL & Parking lights color will remain Amber (Yellow color).
Step 1: AMBER SWITCH PLUG LOCATION

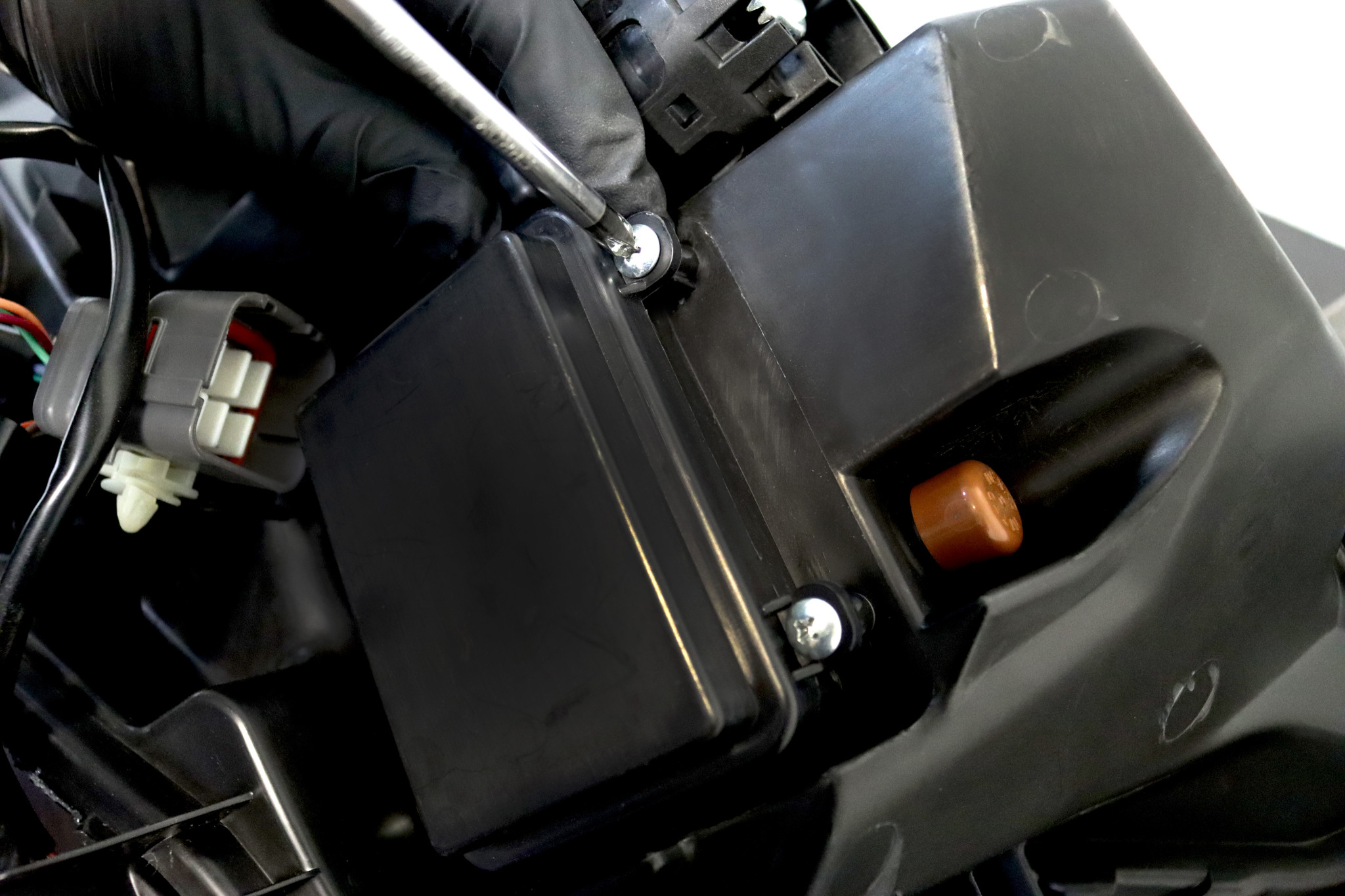

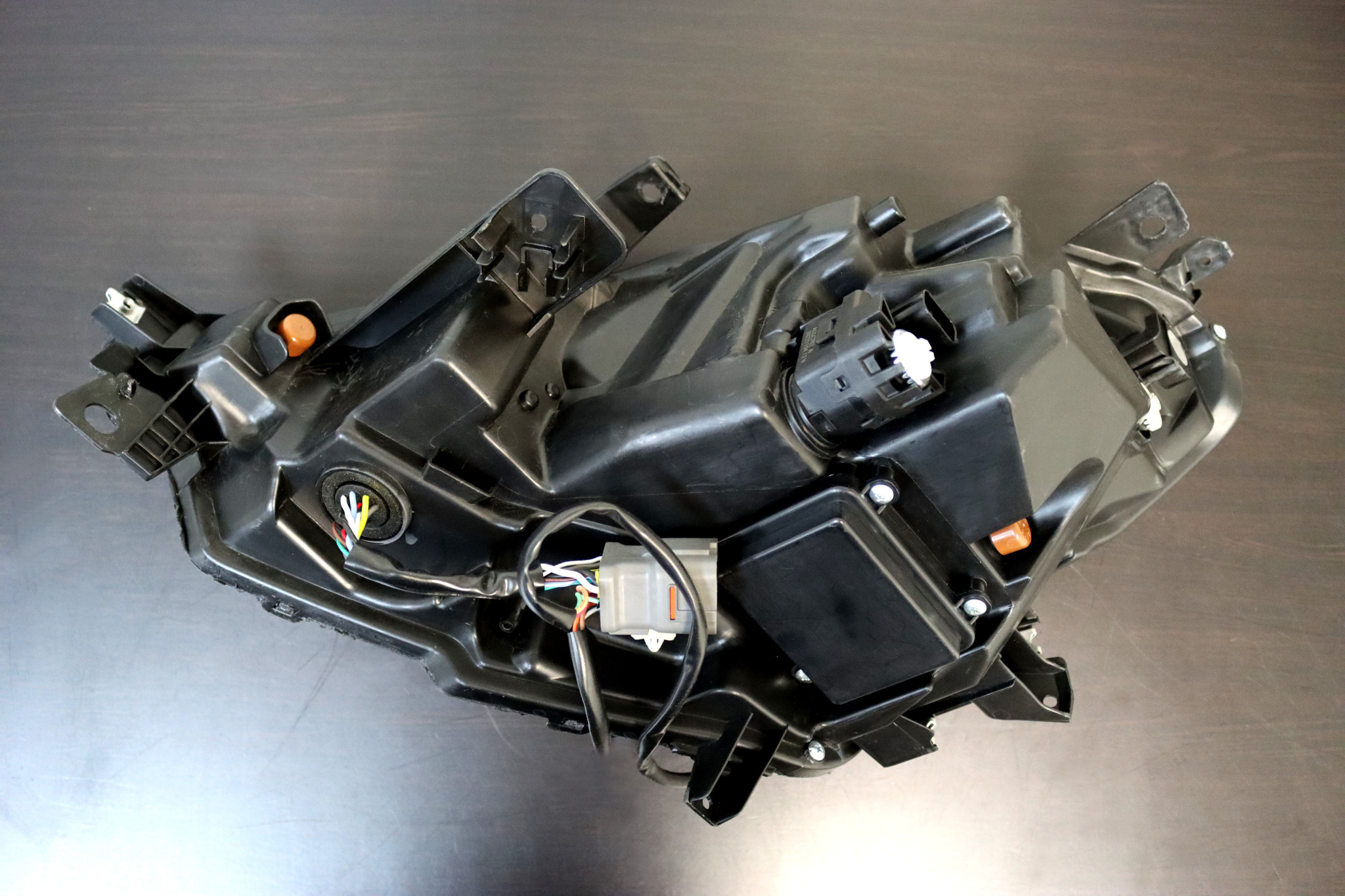

From back of each ALPHAREX headlights, at the bottom you will find 4 screws over a rectangular cover. Unscrew and open the cover.

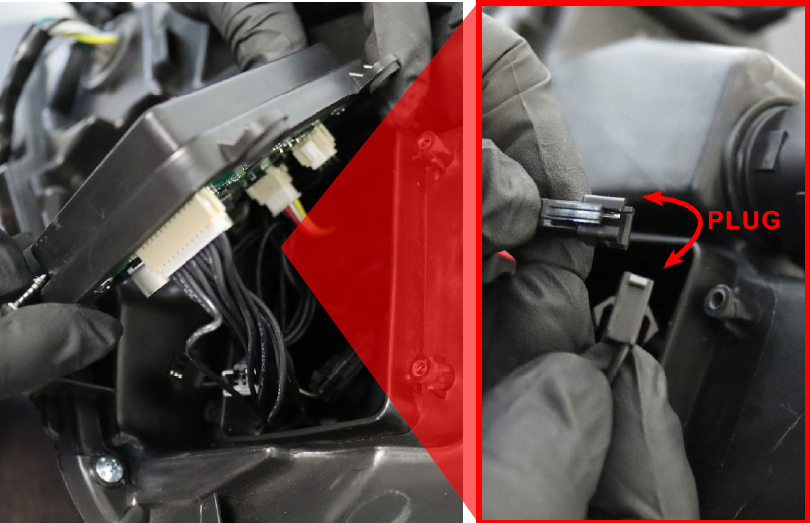

Inside of the headlight, you will find the plug connectors for switching into Amber (Yellow color) DRL & Parking lights.
Step 2: CONNECT THE AMBER SWITCH PLUGS

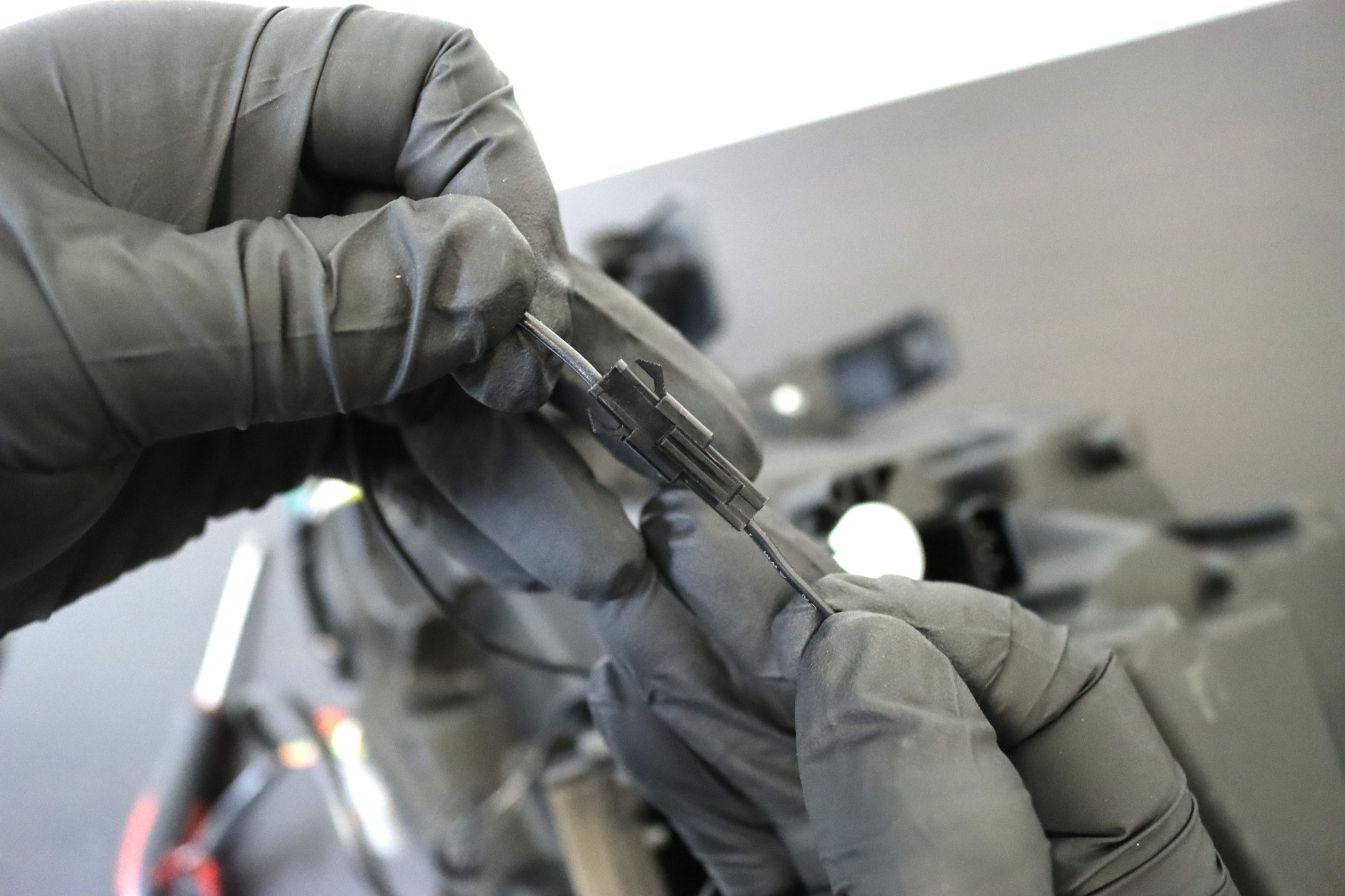

Connect the pairs of amber DRL plugs directly into each of the headlights.
DO NOT USE DIELECTRIC GREASE!
Step 3: COMPLETE THE SWITCH TO AMBER DRL & PARKING LIGHTS
After plugging in the connections, please install the headlights back on to the vehicle.

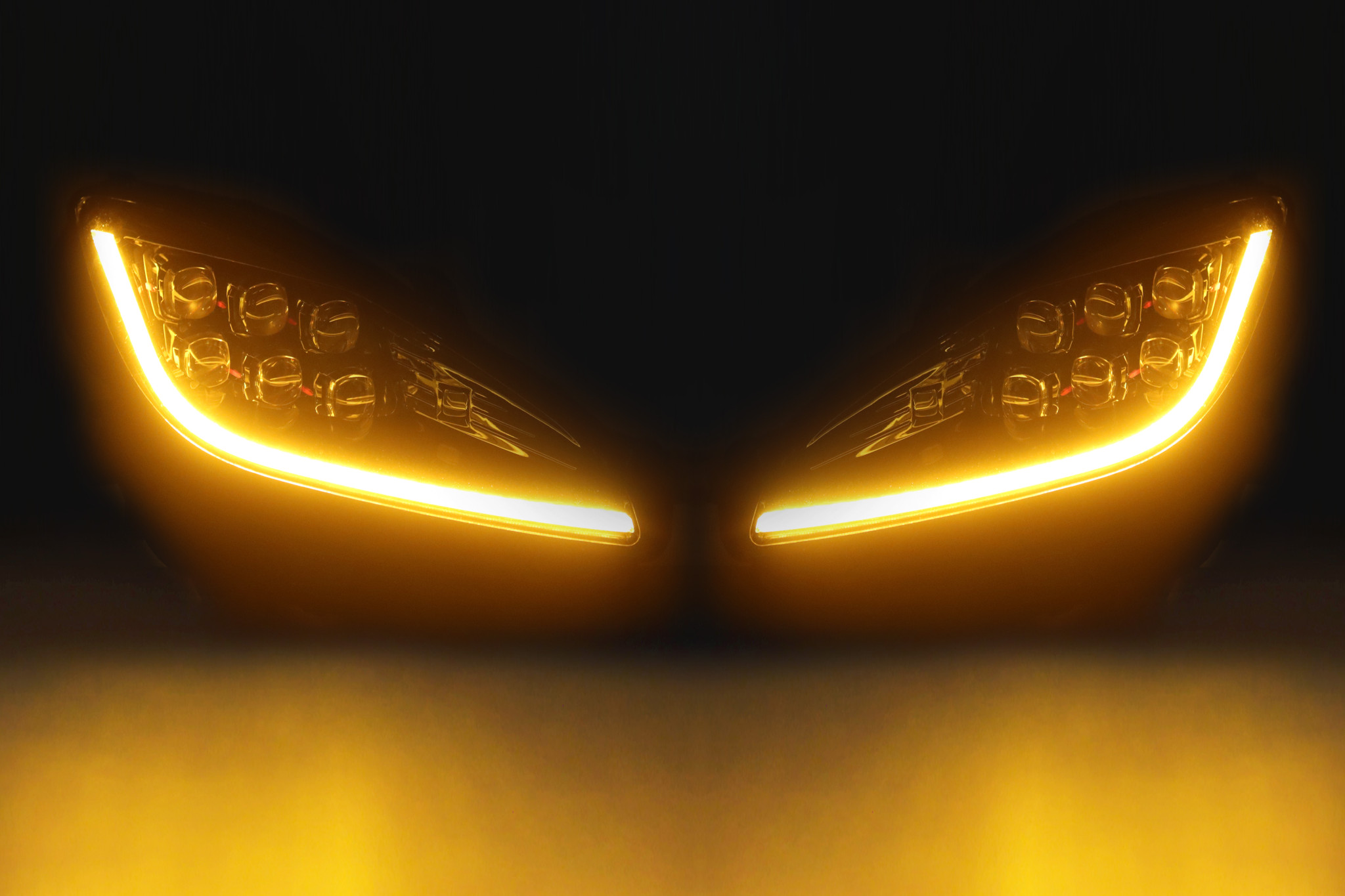

Congratulations! You have switched to Amber (Yellow color) DRL & Parking lights.
