ALPHAREX specializes in designing and producing superior and uniquely stylish aftermarket automotive performance lighting with unrival innovative technology. The following instruction guide we take you through on the topic: How to switch to Amber (Yellow color) DRL & Parking Lights for ALPHAREX 2015-20 Ford F150 | 2017-20 Ford Raptor Headlights step by step.
Disclaimer: This installation article is a tutorial guide. By reading this article, you agree it is for reference only and AlphaRex USA and its distributors make no guarantee on the finished results. Under no circumstances whatsoever shall AlphaRex USA nor its distributors be liable for any damage, misuse or personal injuries. If you do not fully understand the installation procedure, it is highly recommended that you seek help from professional mechanics to do the installation.

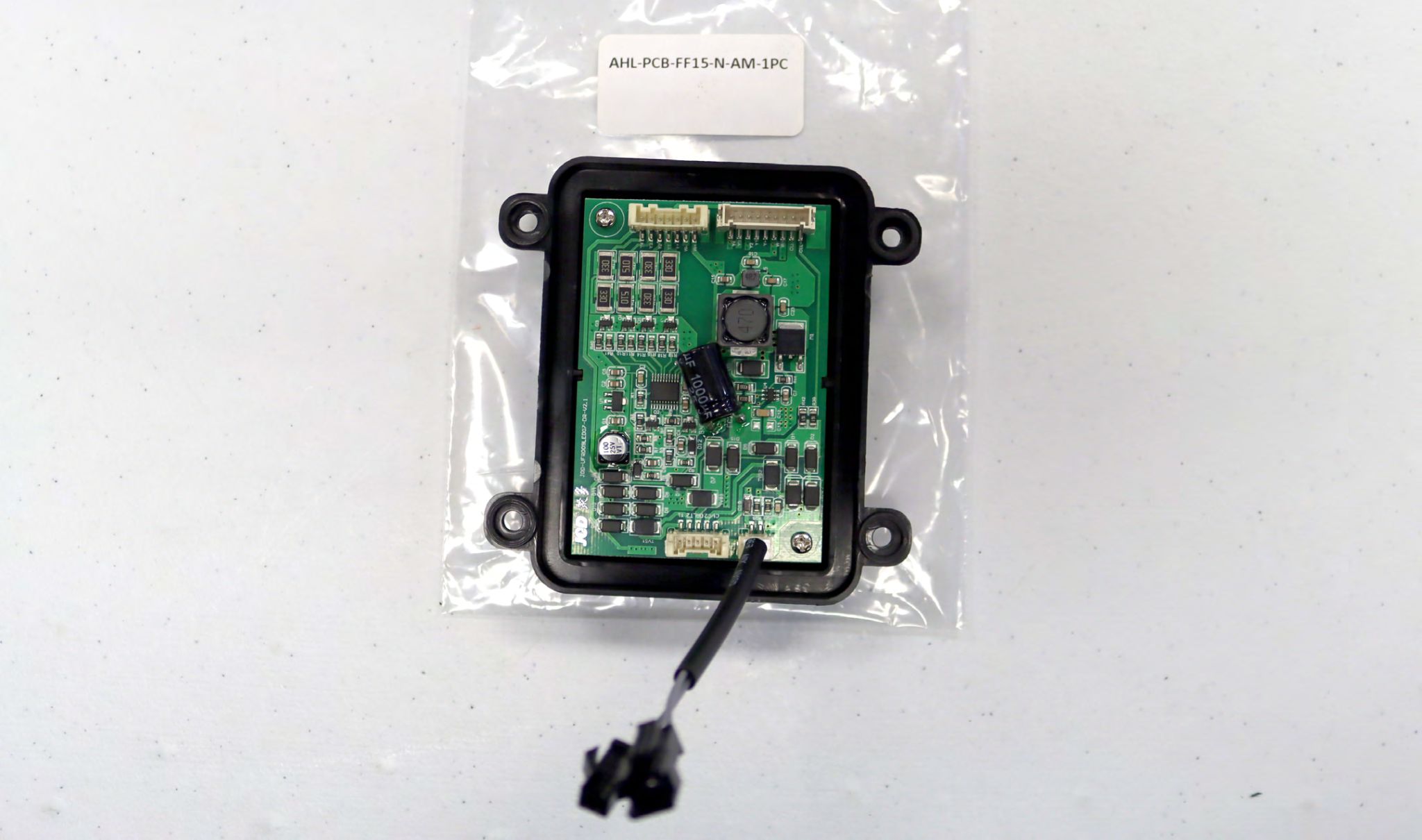

In order to switch for Amber (Yellow color) DRL & Parking lights, you would need to purchase the optional circuit board according the model and the year of your vehicle. (for the NOVA-Series headlights for 2015-20 Ford F150 and 2017-20 Ford Raptor)

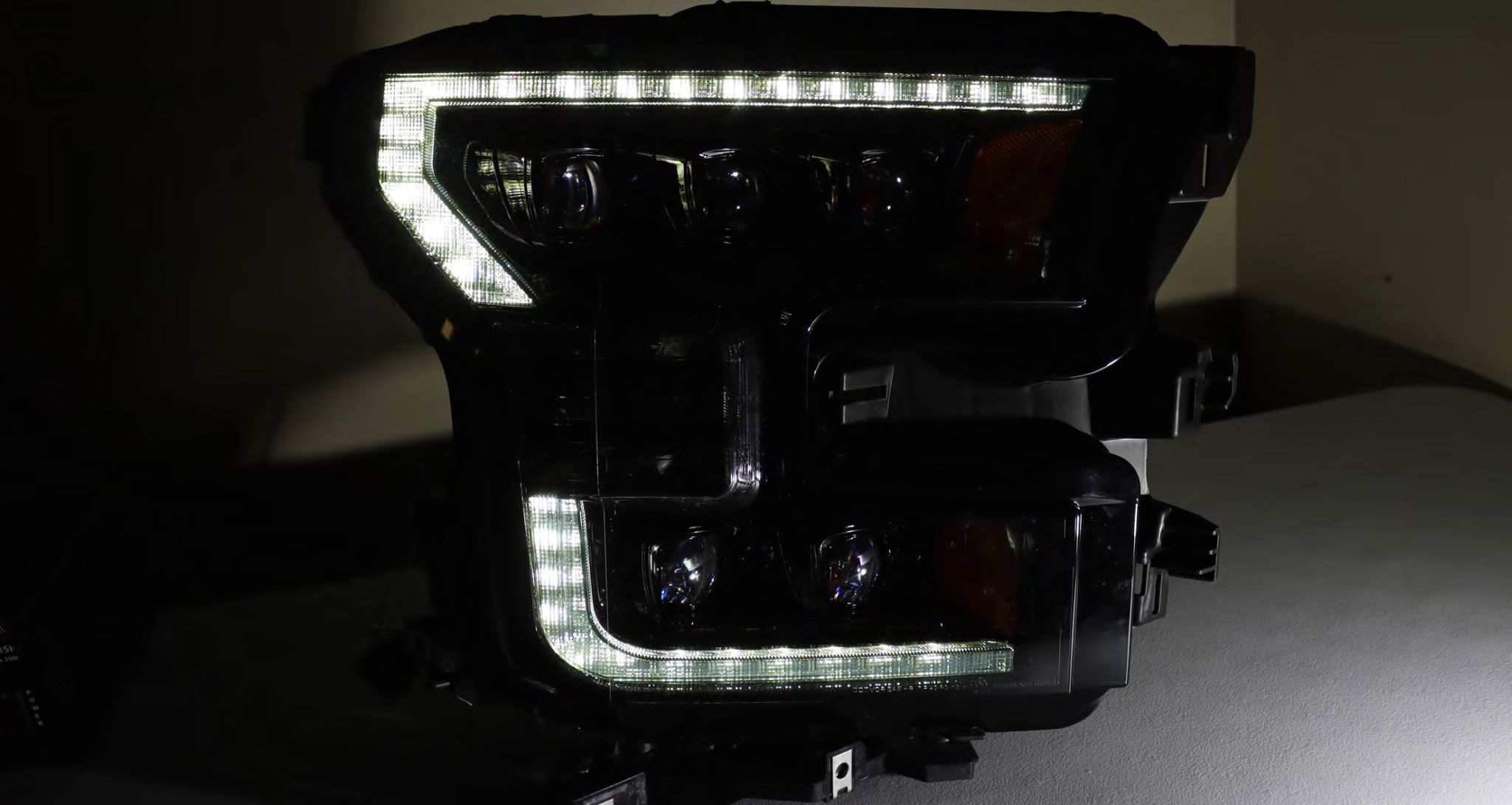

By default the DRL & Parking lights color are White from factory.
CUSTOMERS CAN CHOOSE TO SWITCH INTO AMBER (YELLOW COLOR) BASED ON THEIR PREFERENCE.
PLEASE NOTE: once you install the circuit board and PLUGGED & switched into Amber, the DRL & Parking lights color will remain (Yellow color) at all times.
Step 1: HOW TO REMOVE & SWAP THE CIRCUIT BOARD

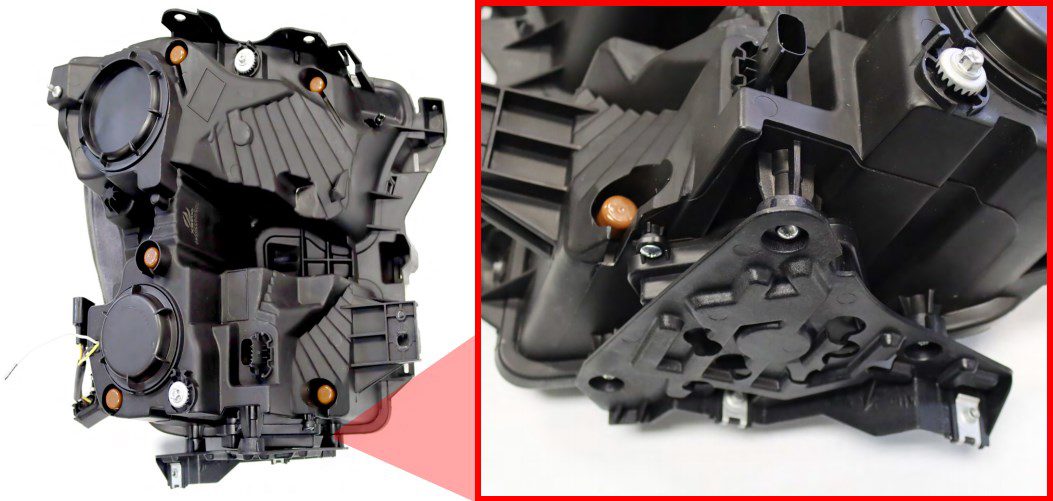

From back of each ALPHAREX headlights, at the bottom you will find the factory circuit board under a mounting bracket. Please unscrew to remove bracket and remove the circuit board.

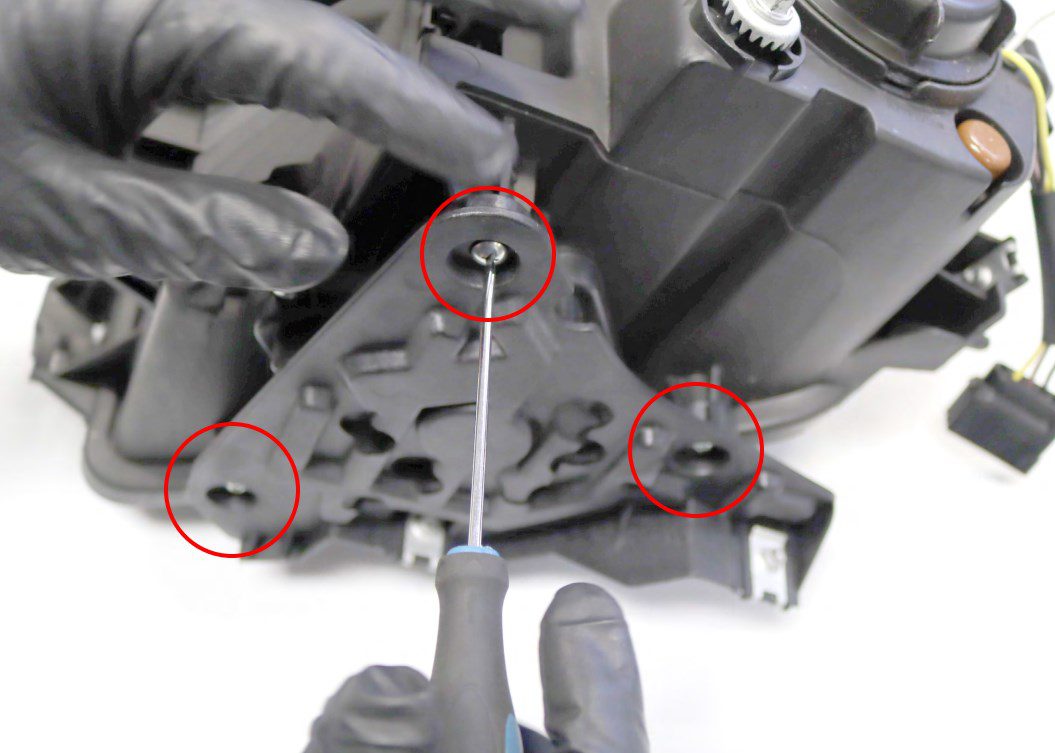

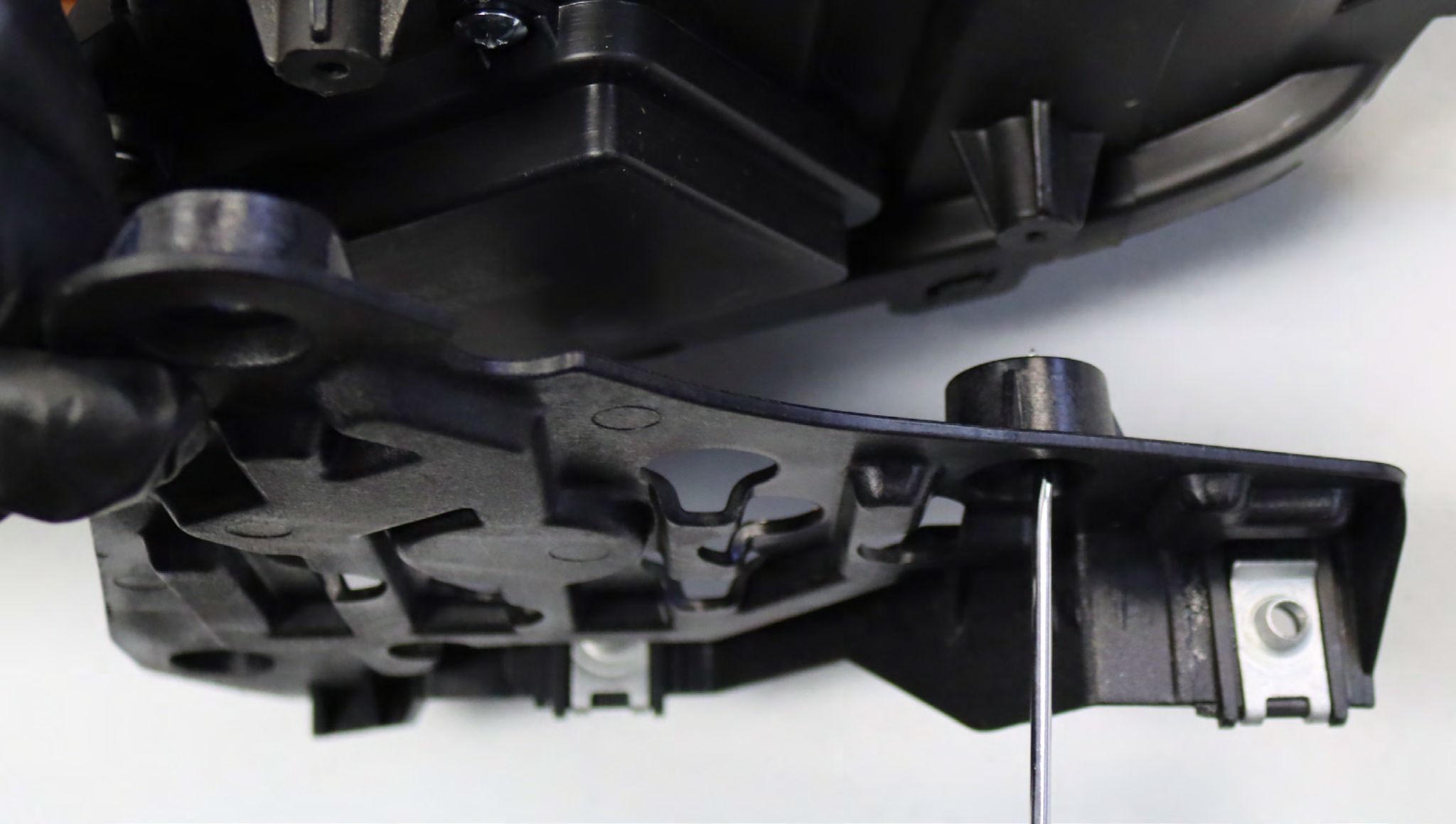

With a Phillip screwdriver unscrew the (3) screws from the mounting bracket.

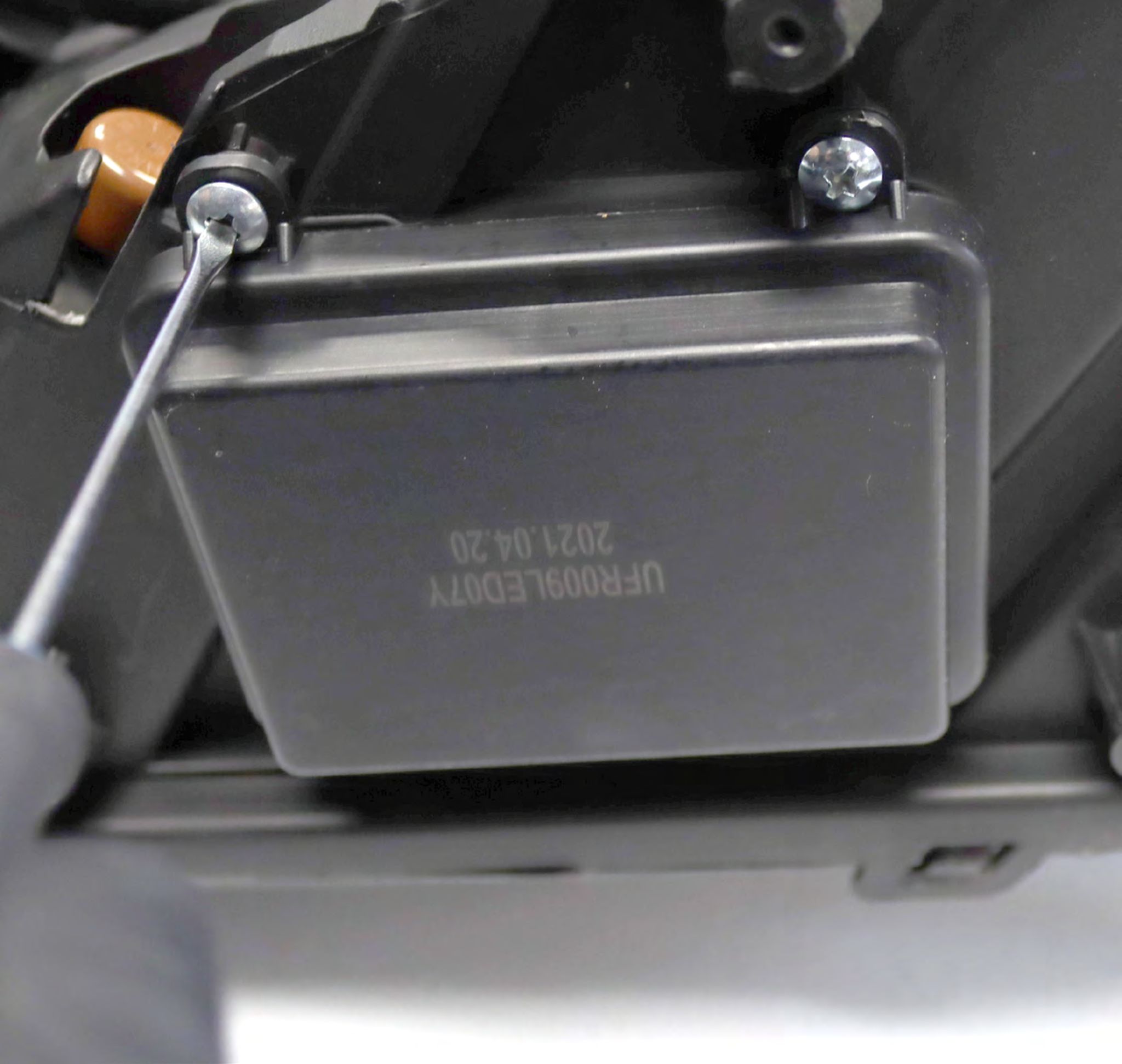

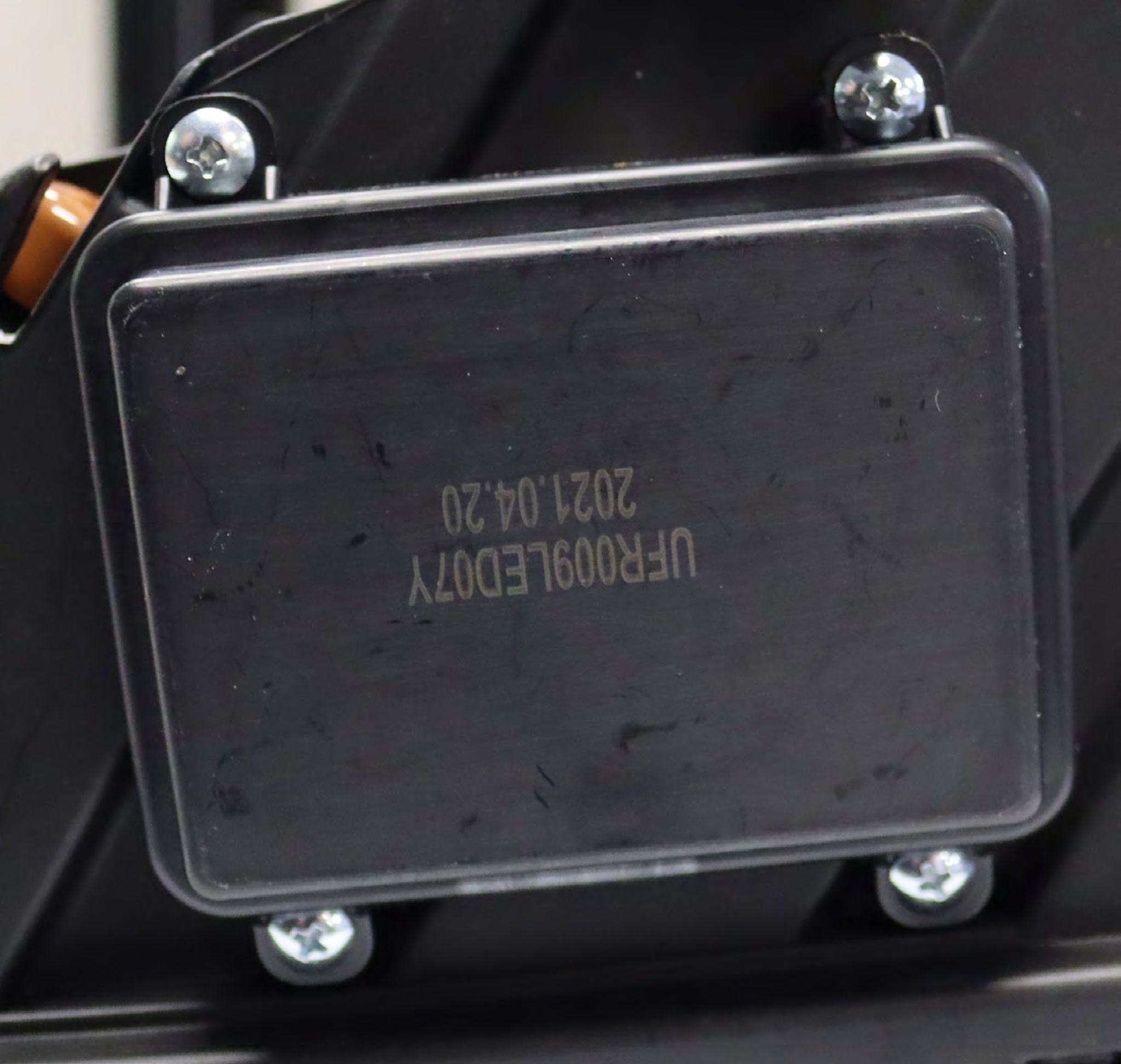

Once the mounting bracket is removed, you will have access to circuit board. Please unscrew the (4) screws to open.

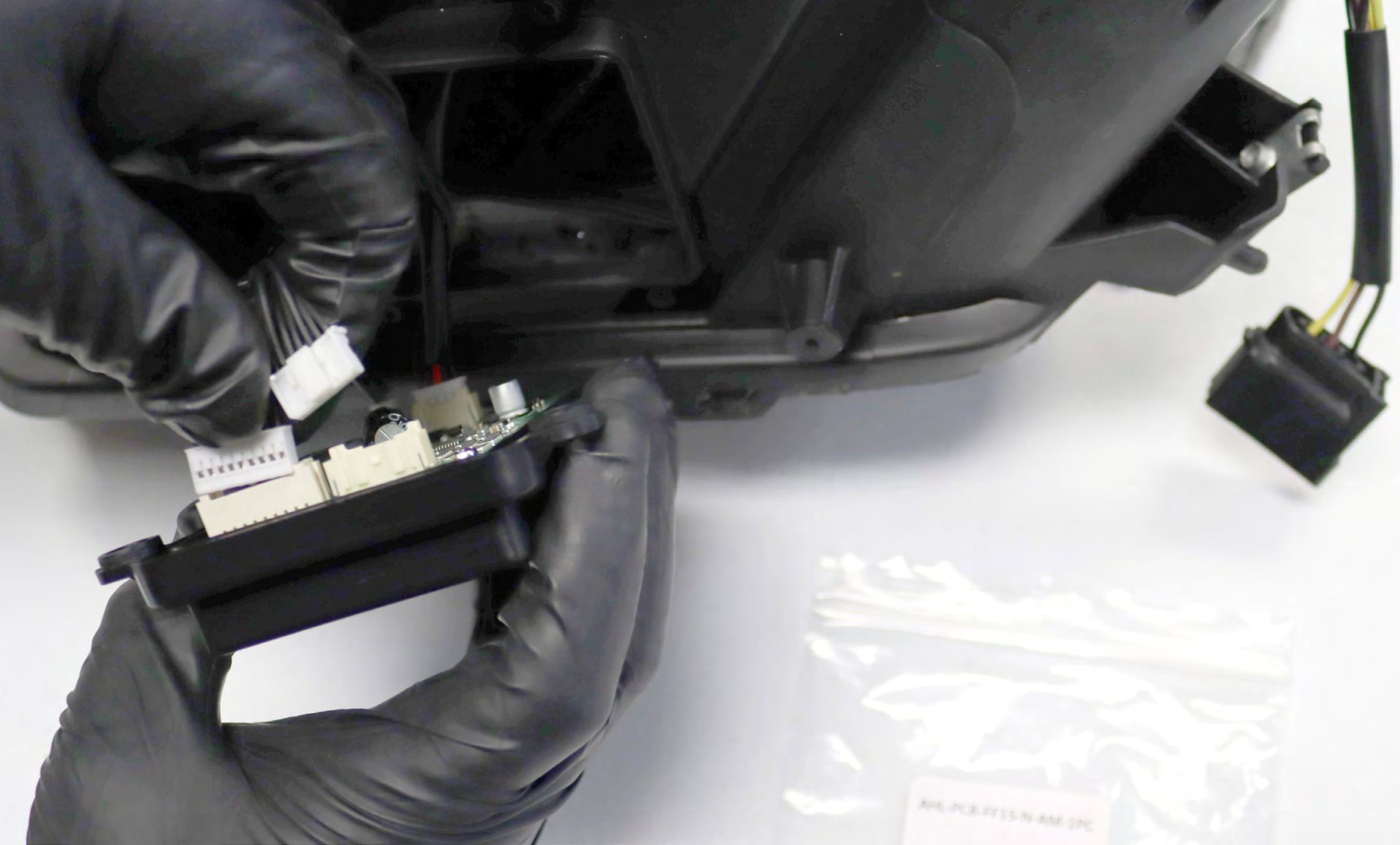

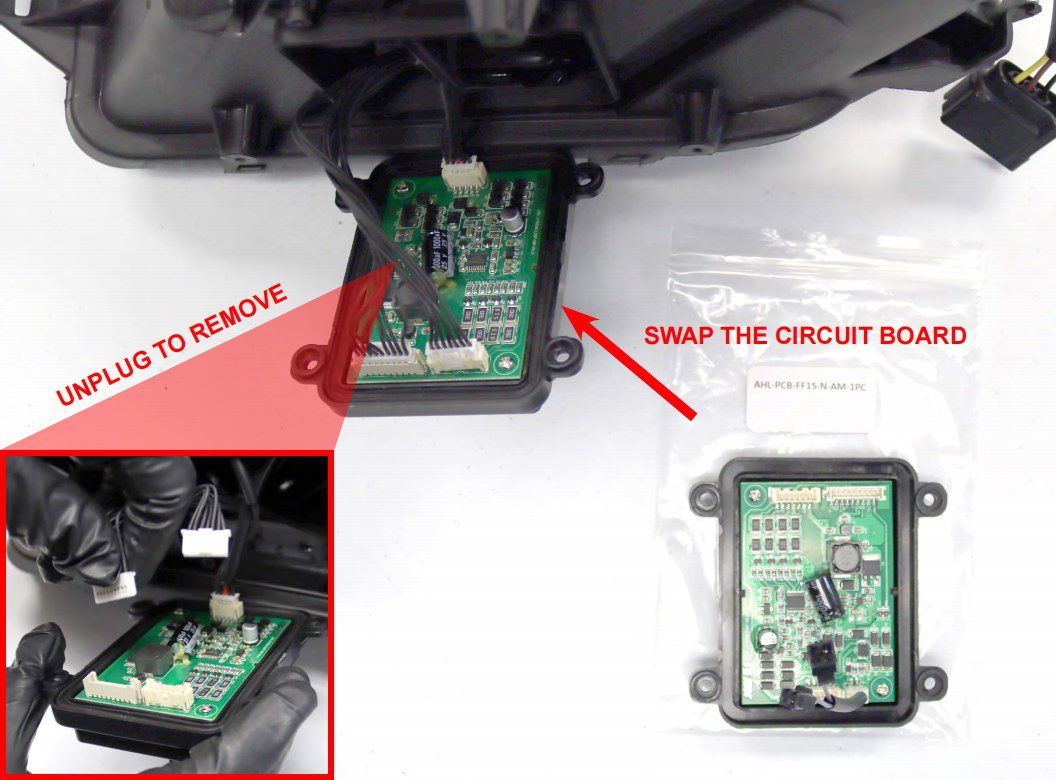

Unplug the wires to remove the factory circuit board and lets get ready for swap the optional circuit board.
Plug the wires to the new circuit board for the swap.
Step 2: CONNECT THE AMBER SWITCH PLUGS

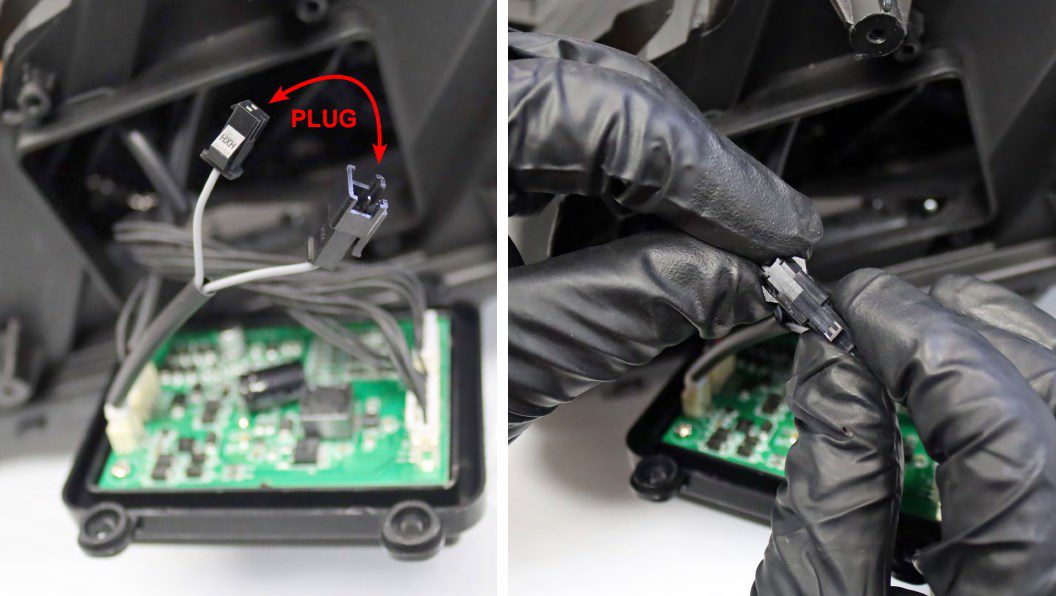

From the new circuit board you will find the amber DRL plugs. Connect plugs directly for each of the headlights.

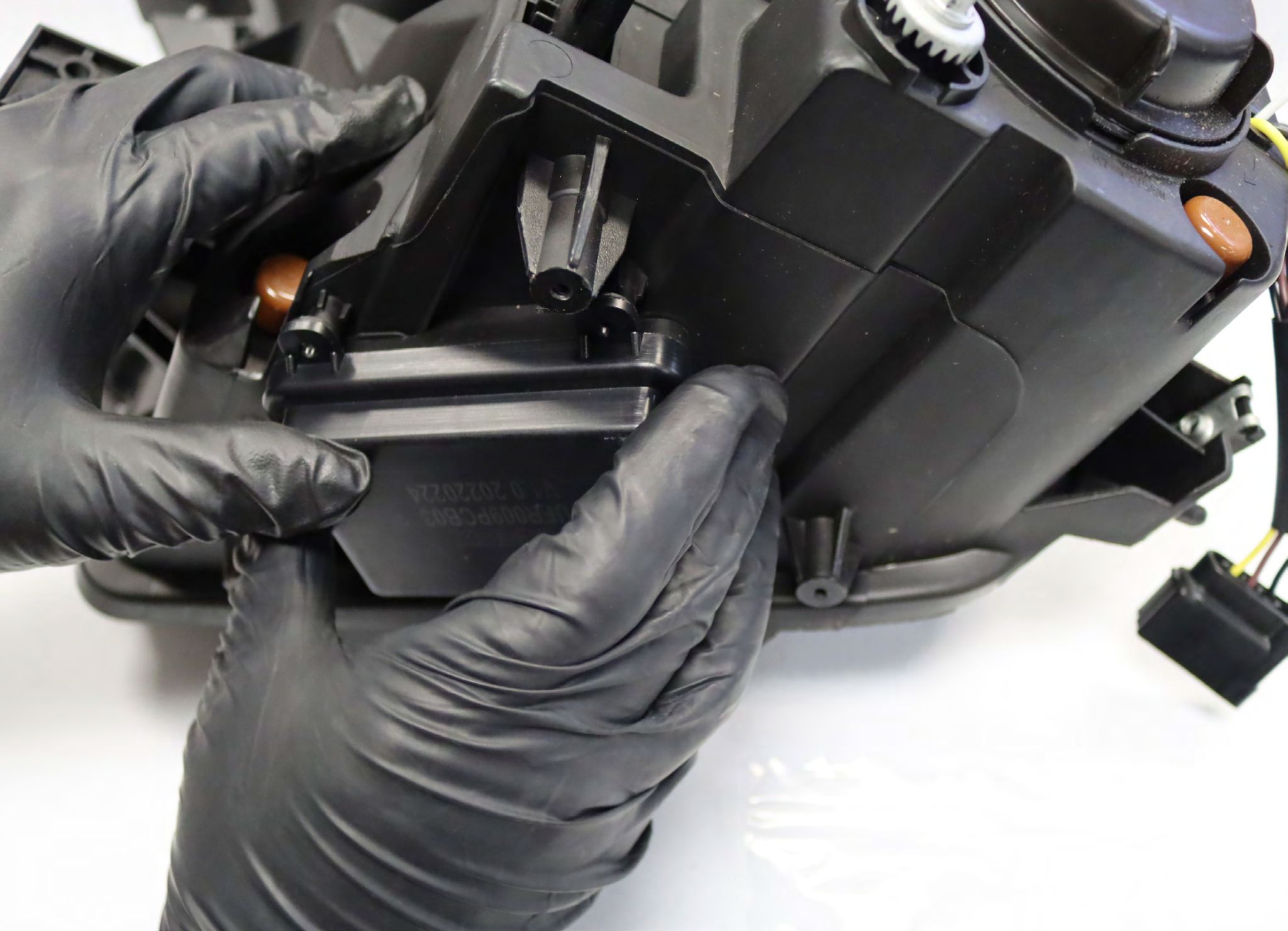

Reverse the removal steps and reinstall the mounting bracket to complete the circuit board swap.
Step 3: COMPLETE SWITCHING INTO AMBER DRL & PARKING LIGHTS
After plug-in the connections, please install the headlights to the vehicle.

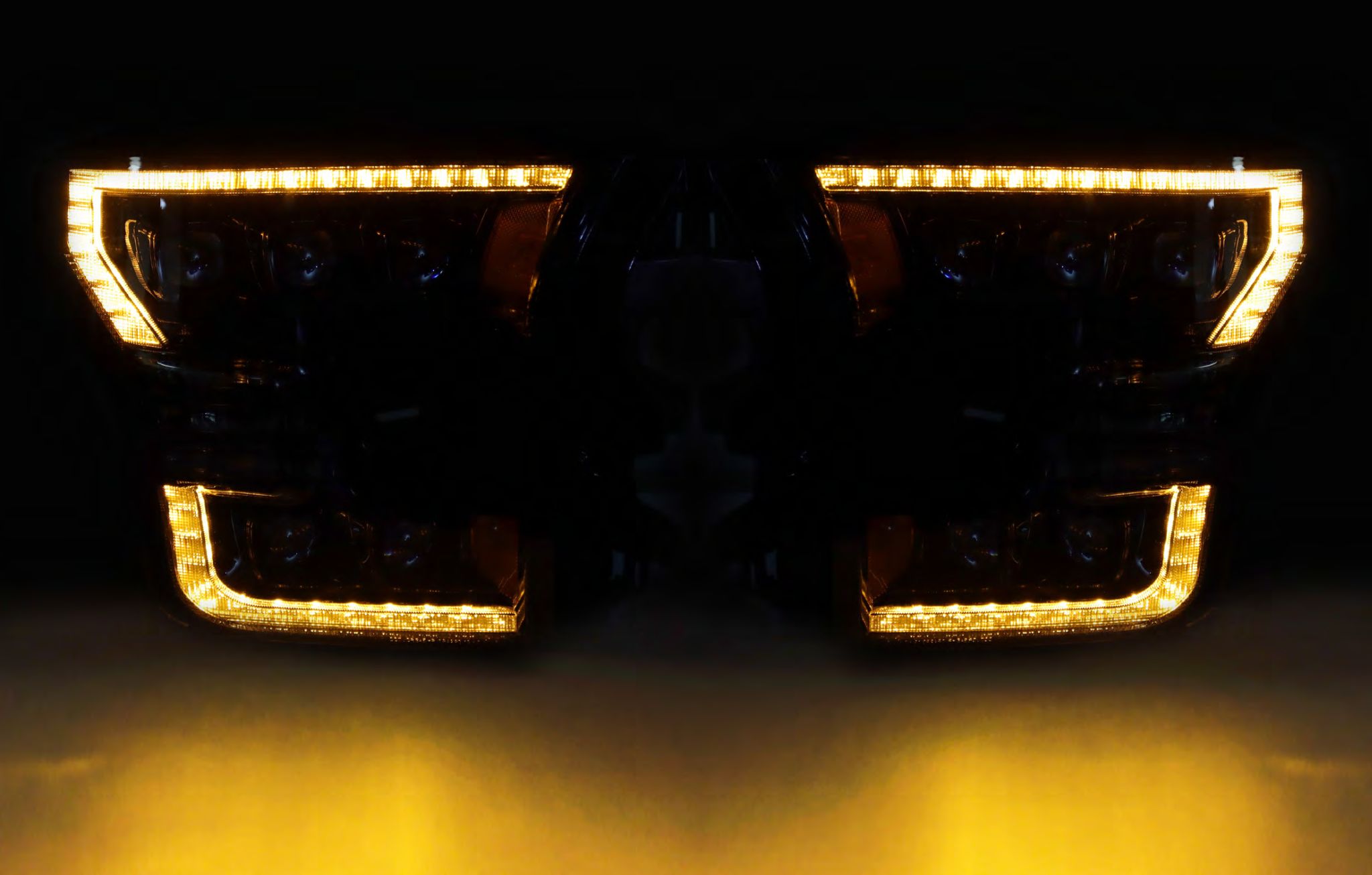

Congratulations! You have switched into Amber (Yellow color) DRL & Parking lights.
